Sheet Metal Engineering & Design
A part can look perfect on screen and still create problems on the shop floor.
Sheet metal engineering connects design intent with the realities of cutting, bending, welding, machining, assembly, and installation. Budde’s engineering team uses decades of 3D CAD/CAM experience to help identify and eliminate design problems digitally before they become manufacturing problems.
Our sheet metal engineering services help manufacturers:
01
Optimize existing parts for manufacturability
02
Develop accurate 3D models and flat patterns
03
Evaluate materials, bends, tolerances, and part geometry
04
Reduce unnecessary manufacturing complexity and cost
05
Move efficiently from prototype to production
Why Involve Budde in
the Design Process?
Design With Fabrication in Mind
Good sheet metal engineering considers how a part will actually be manufactured. Bend radii, flange lengths, hole locations, material thickness, tooling access, welding requirements, and assembly sequence can all affect whether a design moves smoothly into production.
Identify Problems Before the Shop Floor
Changing a digital model is faster and less expensive than correcting a part after material has already been cut or formed. Budde uses CAD/CAM technology and fabrication experience to identify potential issues earlier in the process.
Optimize Existing Designs
You don’t need to start from scratch to benefit from engineering support. If you already have a design, Budde can review it for opportunities to improve manufacturability, simplify production, or reduce unnecessary cost.
Develop New Solutions
Sometimes there isn’t an existing drawing to work from. Budde can help turn a rough sketch or concept into a workable design based on the performance requirements of the application.
Connect Engineering Directly to Production
Budde doesn’t engineer parts in isolation. The same organization supporting the design also understands the cutting, forming, welding, machining, assembly, and installation processes required to manufacture it.
Our Sheet Metal Engineering Capabilities
Budde supports projects at different stages of development, from early concepts to established production parts that need refinement.
| Starting Point | How Budde Can Help |
|---|---|
| Concept or Idea | Translate performance requirements into a practical fabrication solution |
| Sketch | Develop rough geometry into a workable digital design |
| Existing CAD Model | Review and optimize the design for sheet metal fabrication |
| Existing Part | Help recreate or refine components when complete design prints aren't available |
| Prototype | Iterate designs to improve fit, function, manufacturability, and cost |
| Production Part | Support repeat manufacturing with production-ready CAD/CAM data |
| Complex Fabrication | Evaluate how cutting, forming, welding, machining, and assembly requirements interact |
Actual engineering requirements depend on project complexity, available design information, performance requirements, materials, tolerances, and manufacturing processes. Contact Budde to review your application.
Design for Manufacturability Starts Before Production
One of the most valuable roles of sheet metal engineering is determining whether a design can be manufactured efficiently with the intended processes.
Budde can evaluate design decisions that directly affect fabrication, including:
01
Material and Thickness
Material affects strength, weight, corrosion resistance, formability, weldability, springback, and cost. Selecting an appropriate material and standard thickness early can simplify sourcing and fabrication.
02
Bend Geometry
Inside bend radius, flange length, bend direction, tooling clearance, and forming sequence all influence whether a part can be formed efficiently on a press brake.
03
Holes, Slots, and Cut Features
Features located too close to bends or edges may distort during fabrication. Feature size and spacing should also reflect the cutting or machining process being used.
04
Tolerances
Tighter isn’t automatically better. Applying tight tolerances only where function requires them can reduce manufacturing complexity, inspection requirements, and cost.
05
Welding and Assembly
Joint access, fit-up, weld placement, heat input, and assembly sequence should be considered while the components are still being designed—not after they reach welding.
06
Part Consolidation
In some applications, several components can be redesigned as a single formed part. In others, separating an overly complex component into simpler pieces may make fabrication more practical.
The goal isn’t simply to make a design manufacturable. It’s to find an efficient way to manufacture the part while still meeting its performance requirements.
From 3D CAD to
the Shop Floor

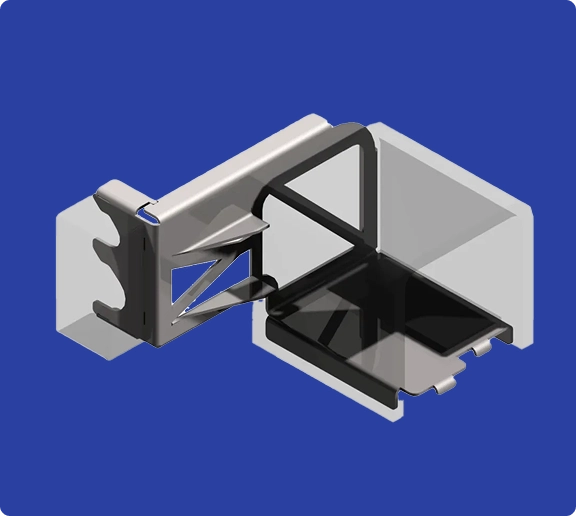

Budde uses 3D CAD/CAM technology to connect engineering directly with fabrication.
Digital models allow our team to evaluate a part before production and develop the information needed to manufacture it accurately.
Budde’s CAD/CAM workflow can support:
- 3D solid modeling
- Sheet metal design development
- Flat pattern development
- Design optimization
- Digital prototyping
- CNC manufacturing data
- Repeat-production data management
Budde’s existing CAD/CAM capabilities support customer data from a variety of common engineering systems and file formats.
Whenever possible, providing a native 3D model or neutral CAD format gives our team more information to evaluate geometry and manufacturability.
From Concept
to Production
Sheet metal engineering needs change depending on where you are in the product development process.
Concept Development
You know what the component needs to accomplish, but you don’t yet have a production-ready design. Budde can help translate those requirements into practical geometry.
Design Optimization
You already have a model or drawing but want fabrication input before releasing it for production. Our team can review the design for potential manufacturing challenges and opportunities.
Prototyping
A prototype provides an opportunity to evaluate fit, function, assembly, and manufacturing strategy before committing to larger quantities. Budde uses digital prototyping and fabrication experience to help anticipate challenges and iterate efficiently.
Production Preparation
Once the design is established, engineering data can transition into the CNC cutting, forming, machining, welding, and assembly processes required to produce the component.
Repeat Production
Established design and manufacturing data can support future orders, helping make repeat jobs easier to quote and reproduce consistently.
More Than a Sheet
Metal Engineering Resource
Budde’s approach to quality starts before production and continues throughout fabrication. We ask questions early, identify potential risks, and focus inspection on the dimensions and features that matter to the finished component.
Send us your drawings or CAD files along with your materials, quantities, critical dimensions, tolerances, and any applicable inspection requirements.
